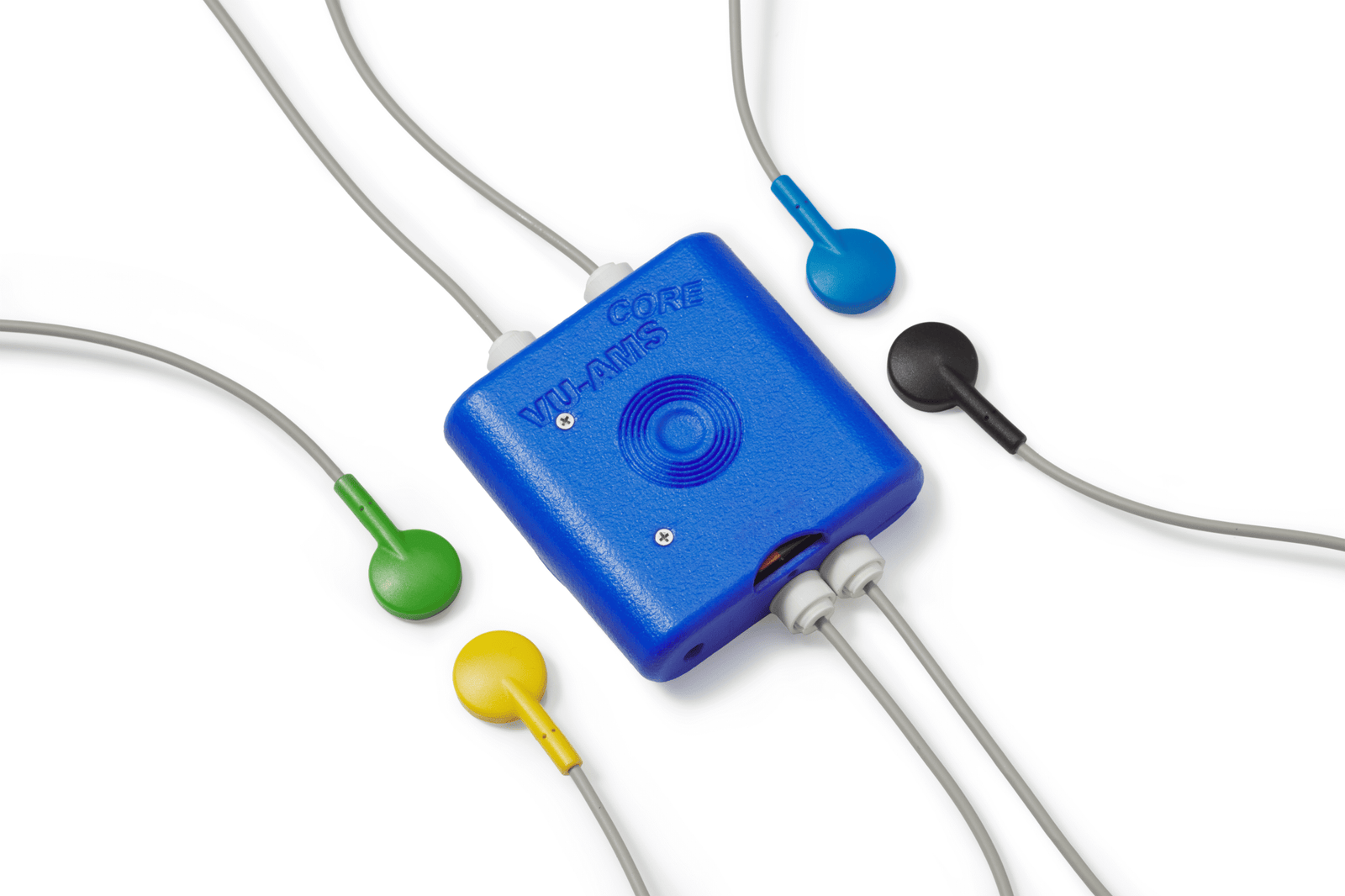

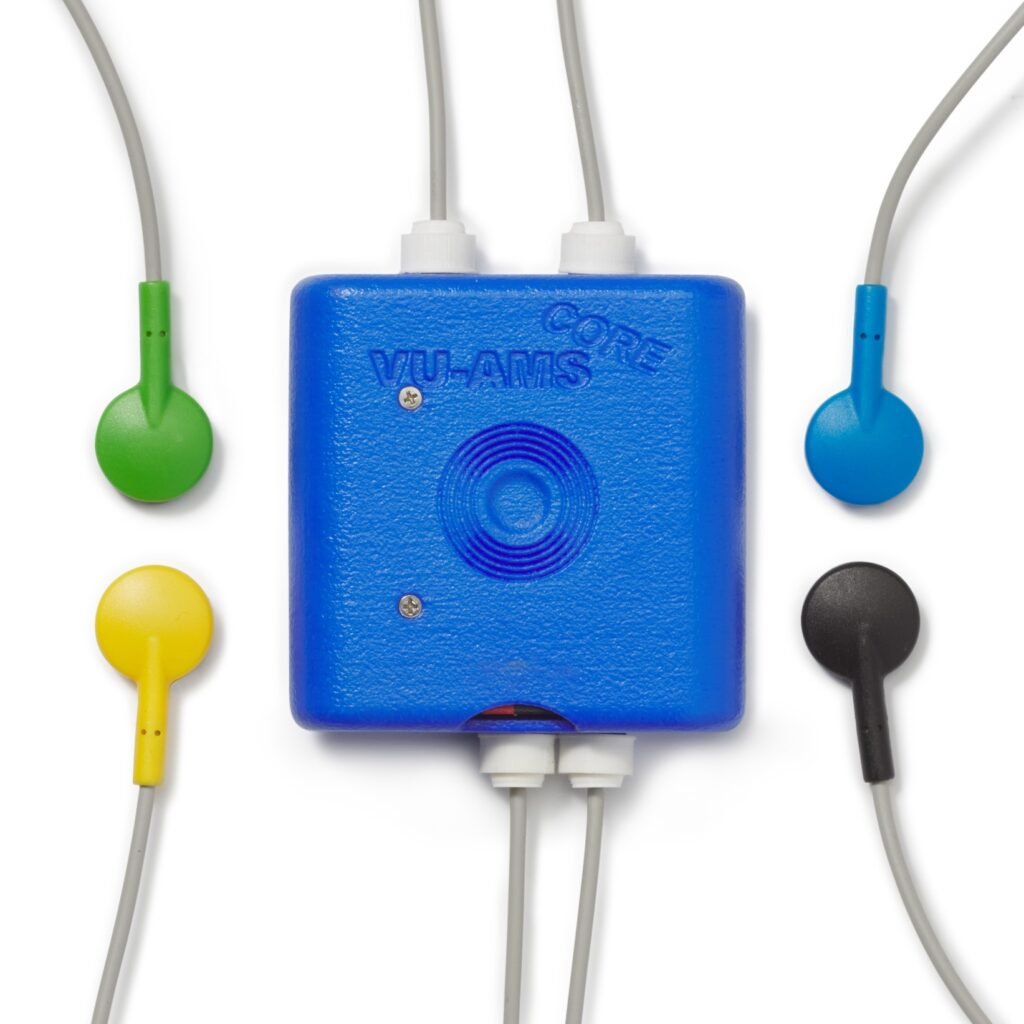

VU-AMS Core
Collect data effortlessly with 30 years’ worth of research and development in the palm of your hand
Daily activity capture
Capture physiological data during sleep, work, exercise, rest and other daily life activities with up to 30 hours of storage available and minimal inconvenience to participants.
Live data visualisation
The CoreControl app allows you to view physiological activity in real-time and operate the device remotely using an iOS device. This is useful for participant orientation, activity visualisation in lab-based studies, viewing and setting predetermined event and phasic markers (by participants and researchers), and monitoring data quality.
Range of derivatives
Our devices provide metrics that make it easy to distinguish between the activation of the sympathetic and parasympathetic nervous systems at any given moment. Some of these include:
- Heart Rate / Interbeat Interval (IBI)
- Heart Rate Variability (SDNN, RMSSD, power spectrum: HF, LF)
- Respiratory Sinus Arrhythmia (RSA)
Discreet, high-precision measurement
The VU-AMS Core’s small body and short cables make data collection discreet with minimal risk of data quality loss during active periods.
Primary Sensors:
+- Electrocardiography (ECG, 1000 Hz)
- Impedance cardiography (ICG, 1000 Hz)
- Triaxial accelerometer (1000 Hz)
- Triaxial gyroscope (1000 Hz)
- Triaxial magnetometer (50 Hz)
- (Optional) electrodermal activity (EDA, 1000Hz)
Storage & Memory
+Data stored locally on microSD card
Dimensions
+57 x 57 x 17mm, 52g (including body, cables and microSD card)
Secondary Sensors:
+- Air pressure level (5 Hz)
- Temperature of the device (1000Hz)
- Voltage of the current source (1000Hz)
- Timing of the AD Converter (1000Hz)
- Battery voltage (1 Hz BAT)
- Device orientation (50 Hz, Roll, Pitch, Yaw)
Connectivity
+Bluetooth connection to iOS and Android devices
